Auxiliary Crossarm

Auxiliary Crossarm

Equipment used in construction or maintenance for handling conductors in operations of replacement of crossarms, insulators or poles in short spans of medium-voltage overhead networks up to 15 kV phase-to-phase.

For models RH4862-6, RH4862-8 and RH4862-51, it is necessary to complement with two saddles (FLV4740-5W) to install the auxiliary crossarm mast to the pole. The saddles must be purchased separately.

It has a load capacity of 272 daN (600 lb) with the four conductors in balance and 68 daN (150 lb) in each clamp, under unbalanced condition.

FLV32426-1 – Auxiliary Crossarm for Articulated Crane Mounting

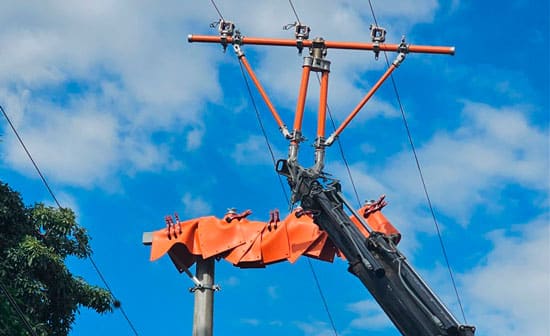

Designed for safe operations on energized distribution networks, the Auxiliary Crossarm for articulated crane mounting is a practical and robust solution for lifting conductors during pole replacement, as well as crossarm and insulator substitution, in accordance with the safety procedures defined by the operating company.

Developed for safe operations on energized distribution networks, the Auxiliary Crossarm for Articulated Crane is a practical and robust equipment for lifting conductors during pole replacement, replacement of crossarms and insulators, according to the safety procedures defined by the executing company.

The ideal tool for safe and efficient maintenance in the field, with focus on mobility, strength and practicality.

LV32426-1 - Cruzeta Auxiliar para Fixação em Guindaste Articulado - Ritz

Category: Tags:

Description

RH4862-6 – Auxiliary Crossarm

Set composed of: 01 pc FLV21310-1 Crossarm pole Ø 64 mm x 1.78 m insulating length; 01 pc FLV17928-1 Mast pole Ø 64 mm x 1.35 m insulating length; 01 pc FLV05613-1 Eye head for connection of the mast pole to the crossarm pole; 04 pc RM4805-16 Suspension clamp without insulator.

ReferencesFeatures
RH4862-6

RH4862-8 – Auxiliary Crossarm

Set composed of: 01 pc FLV21310-2 Crossarm pole Ø 64 mm x 2.39 m insulating length; 01 pc FLV17928-1 Mast pole Ø 64 mm x 1.35 m insulating length; 01 pc FLV05613-1 Eye head for connection of the mast pole to the crossarm pole; 04 pc RM4805-16 Suspension clamp without insulator.

ReferencesFeatures
RH4862-8

RH4862-51 – Mast Pole

Set composed of: 01 pc FLV17928-2 Mast pole Ø 64 mm x 2.83 m insulating length; 02 pc FLV03457-13 Support Ø 38 mm x 2.03 m insulating length; 02 pc RM4741-3 Collar Ø 64 mm; 01 pc RM1728-5 Strap Ø 64 mm for brace; 01 pc FLV05613-1 Eye head for connection of the mast pole to the crossarm pole.

ReferencesFeatures
RH4862-51

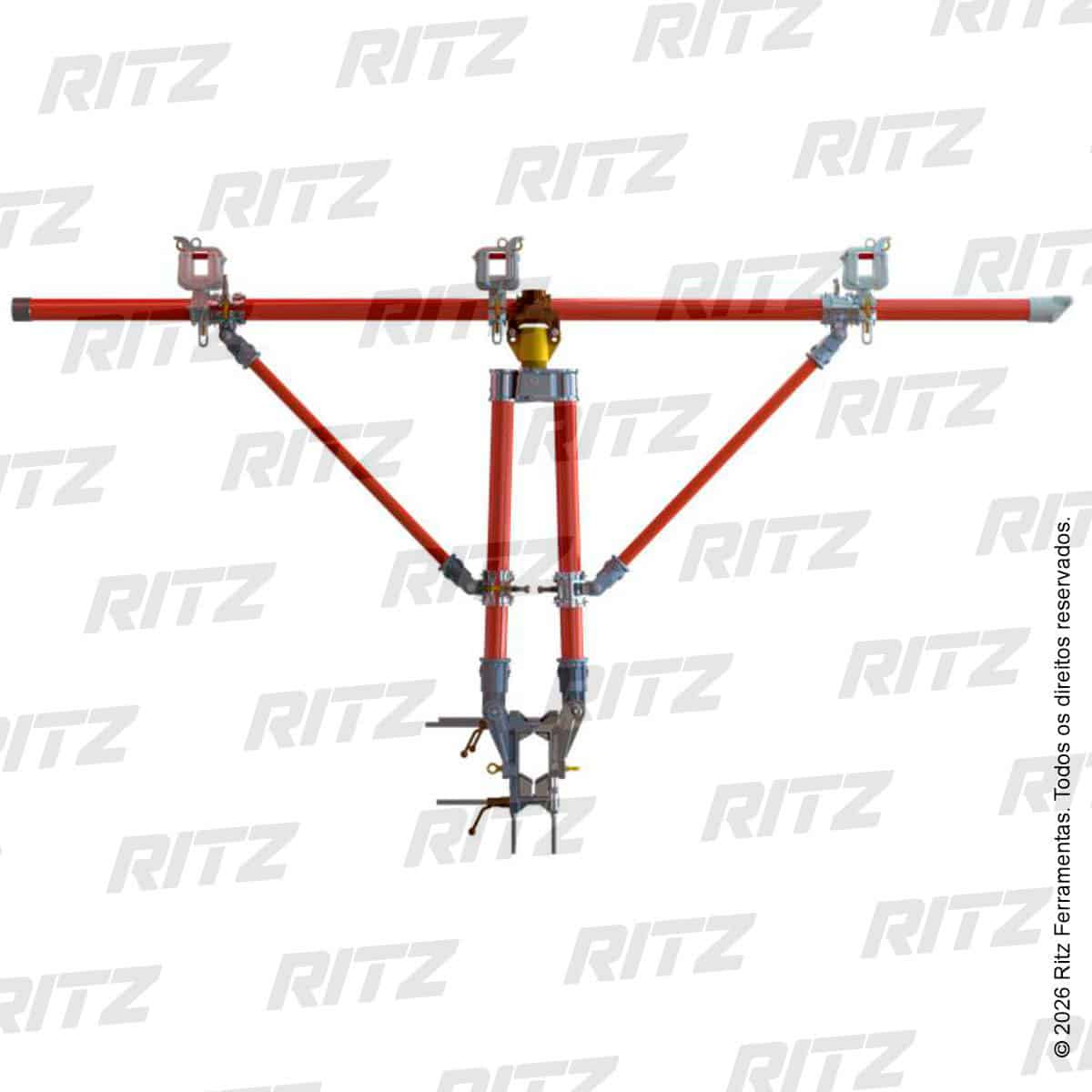

FLV32426-1 Auxiliary Crossarm for Articulated Crane Mounting

Adjustable Saddle: Compatible with rectangular booms of various sizes and hexagonal booms (with the use of additional shims, according to the equipment model). Inclination Adjustment with 7 Positions: Allows precise adjustment of the crossarm angle in relation to the conductors.

Set composed of: 02 Mast Support Poles: Manufactured in RITZGLAS® tube, offer high rigidity and support to the set; Clamps with Rollers RC400-0268 (opening 1-3/4″) or RC400-0269 (with insulator opening 2″): Ensures stability and safety during conductor handling.

Load Capacity: Supports up to 454 daN of balanced vertical load, in addition to allowing lateral movement of conductors with firmness and control.

ReferencesFeatures
FLV32426-1Auxiliary Crossarm for Mounting on Articulated Crane
Approx. weight: 38 kg (83.77 lb)

Accessories

ReferencesFeature
RC400-0268Lifting clamp with rollers for installation on the auxiliary crossarm of the truck-mounted crane or similar vehicle, opening 1-3/4"
RC400-0269Lifting clamp with rollers for installation on the auxiliary crossarm with insulator RM4805-7, opening 2"

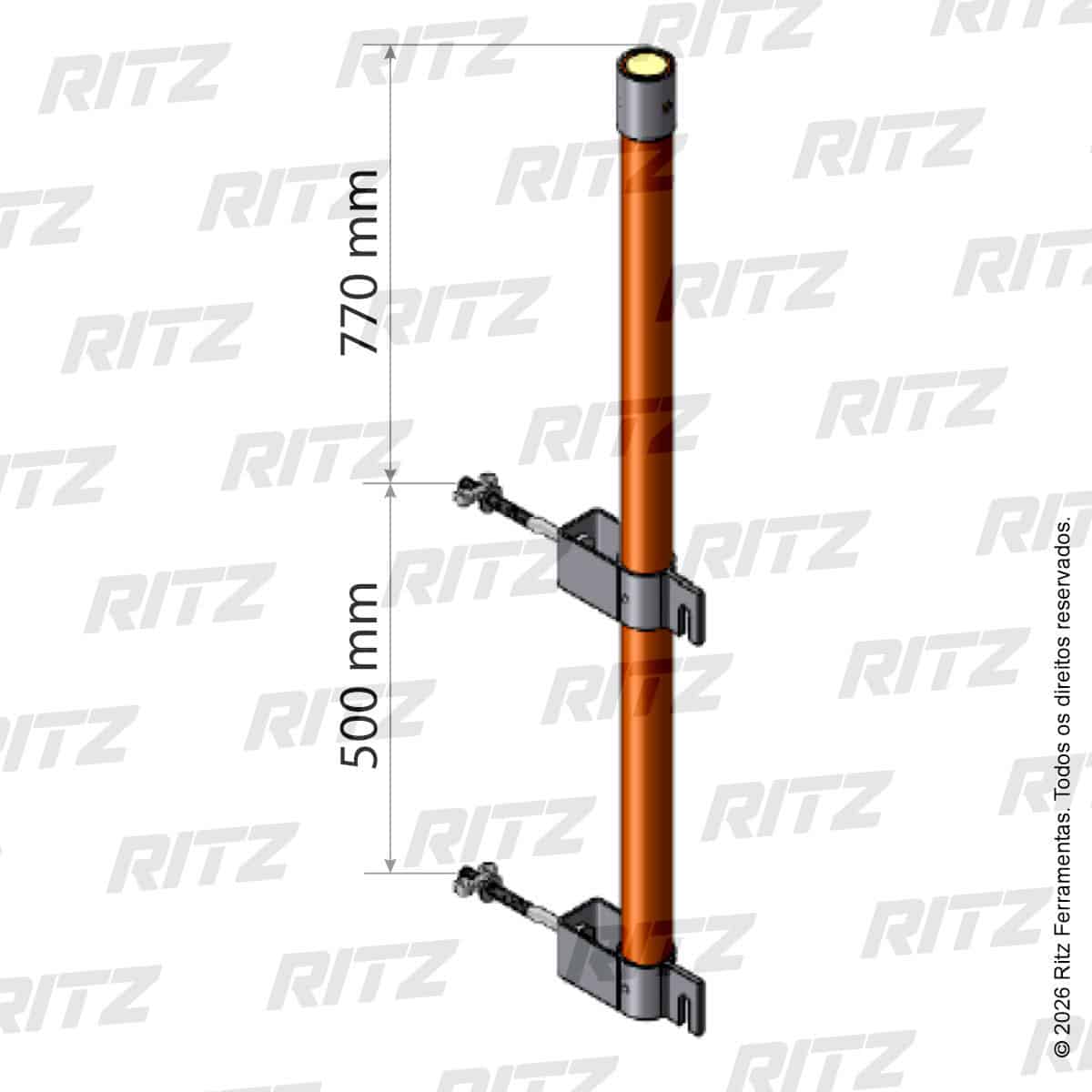

FLV30734-1 Mast Pole for Double “T” and Circular Pole Crossarm

It has an upper head manufactured in aluminum with preparation for coupling of Crossarm Pole (it is necessary to use the Eye head – FLV05613-1) and Fixed supports in galvanized steel for mounting on double “T” or circular poles.

ReferencesFeature
FLV30734-1Approx. weight: 8.0 kg (17.6 lb)
